APPLICATIONS & DATA ENTRY SYSTEMS TOOLSET
WHAT IS PANEL APPLICATIONS AND DATA
ENTRY SYSTEMS TOOL (PADEST)
A DESCRIPTION THROUGH THREE SAMPLE APPLICATIONS:
1. Sample PADEST Application (I)
Create a
TSO/ISPF Panel Application to collect valid information, and create a
file in a
layout defined by the user, each record of which file represents the
entries
entered on the panel.
2. Sample PADEST Application (II)
Create a
TSO/ISPF Panel Application to collect valid information, and issue
commands
in order to submit a JCL for processing SQL statements.

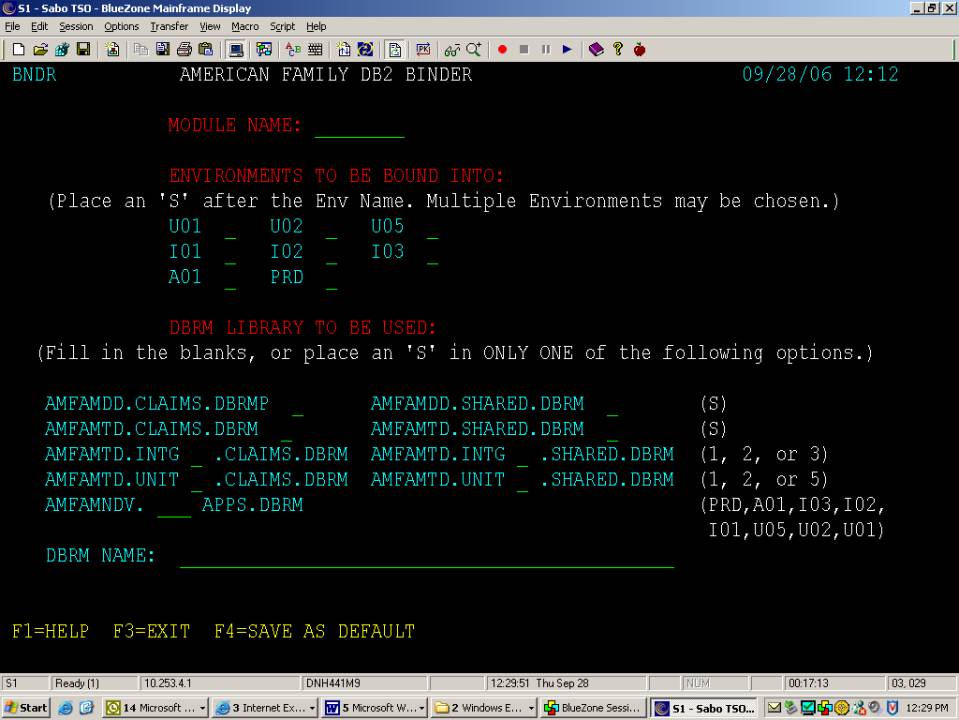

3. Sample PADEST Application (III)
Create a
TSO/ISPF Panel Application to collect valid information, and issue
commands
in order to submit JCLs for DB2 Binds
A SAMPLE PADEST APPLICATION (I)
CREATE A PANEL APPLICATION TO COLLECT
VALID INFORMATION, AND CREATE A FILE IN A LAYOUT DEFINED BY THE USER, EACH RECORD
OF WHICH FILE REPRESENTS THE ENTRIES ENTERED ON THE PANEL

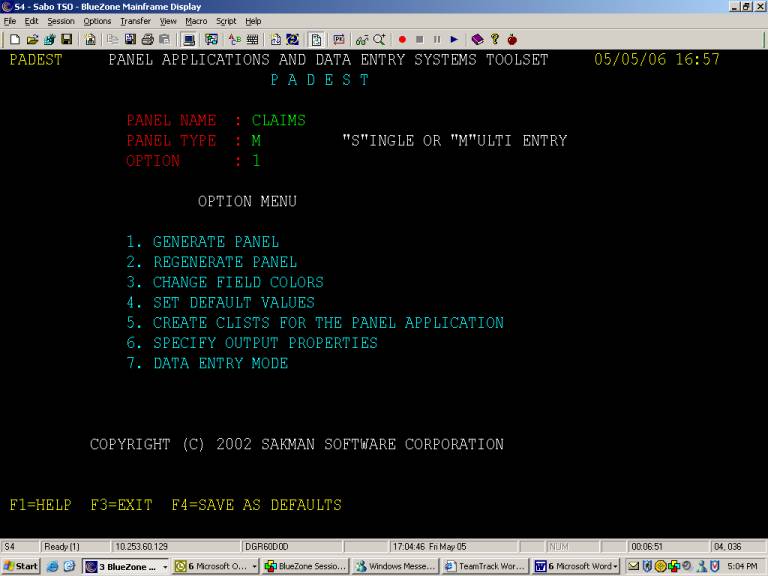

PANEL APPLICATIONS & DATA ENTRY SYSTEMS TOOLSET (PADEST) PRIMARY MENU:
1: A new panel is to be created 2: An existing panel is to be updated (usually followed by Option 5)
3: Colors on the panel will be changed 4: Default values will be placed on the data entry fields
5: CLISTs for a panel will be created 6: Attributes for fields will be defined.
7: A panel is to be called for data entry
Normally, Option 1 does all of the following options: Option 1, 4, 5, and 6.

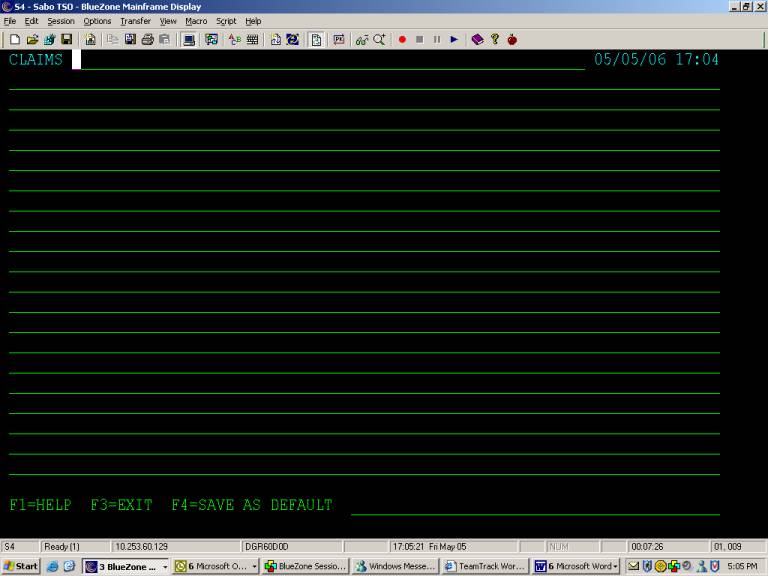

Option 1 brings the following screen:
Title Line is line 1, and is used for a description of the panel.
Panel Body is line 2 thru line 21, and is used for data entry.
Function Line is line 23, and is used to define function keys. (PF1, PF3, and PF4 are predefined. User may add PF5 thru PF8.)

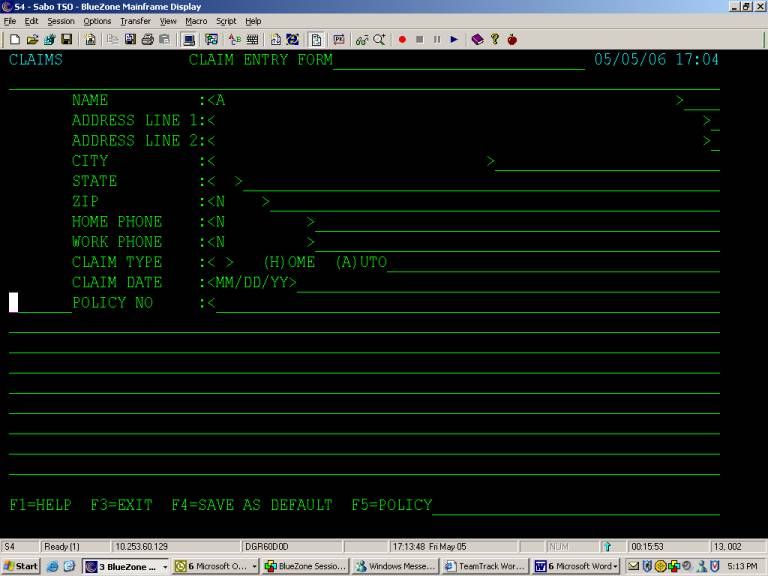

A sample panel creation: Unprotected (entry) fields are delimited by < and >. An edit code may be entered at the first position of the field. Here, additional function key PF5 is defined by the user.

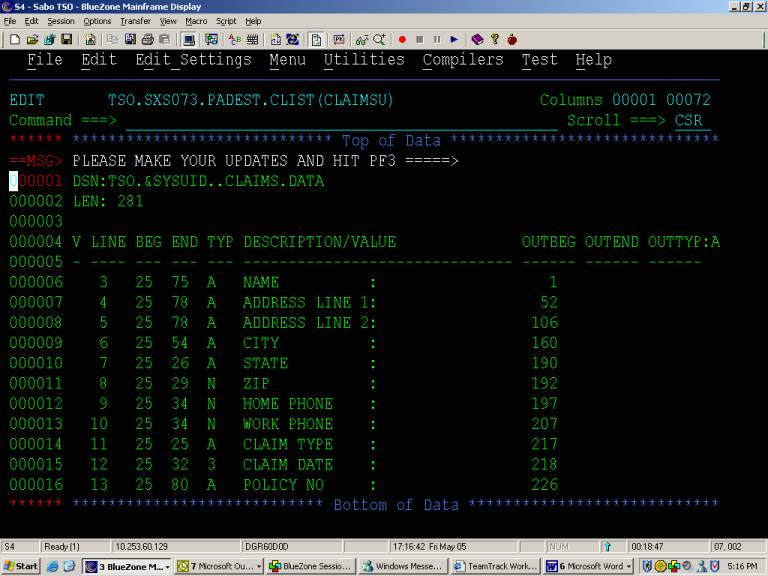

PF3 here brings the following screen:
These attributes are created by the utility.
The user may want to change them on this screen.
Panel thus created is named “CLAIMS”, and may be called by “TSO CLAIMS” or the Option 7 of Primary Menu.

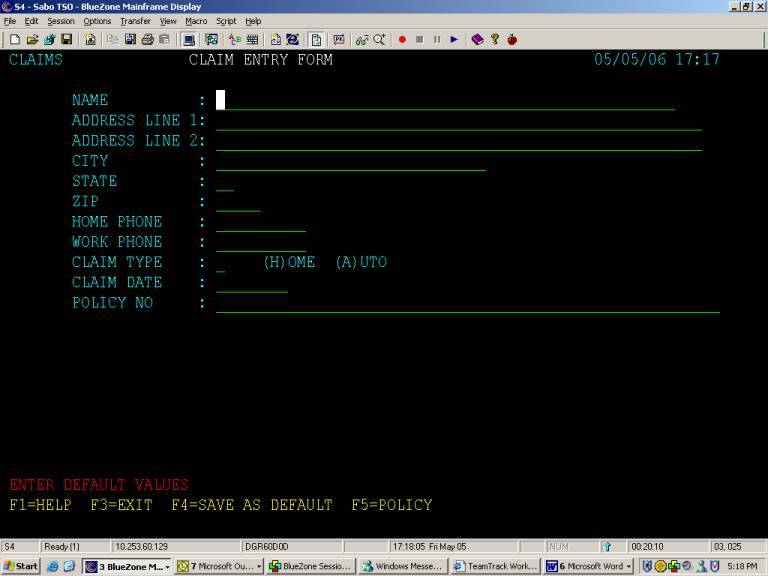

The user may enter default values and press PF4:

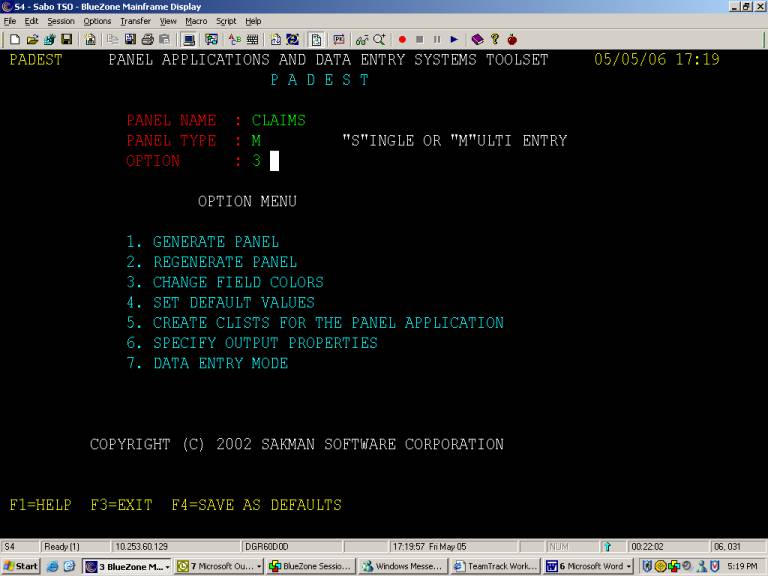

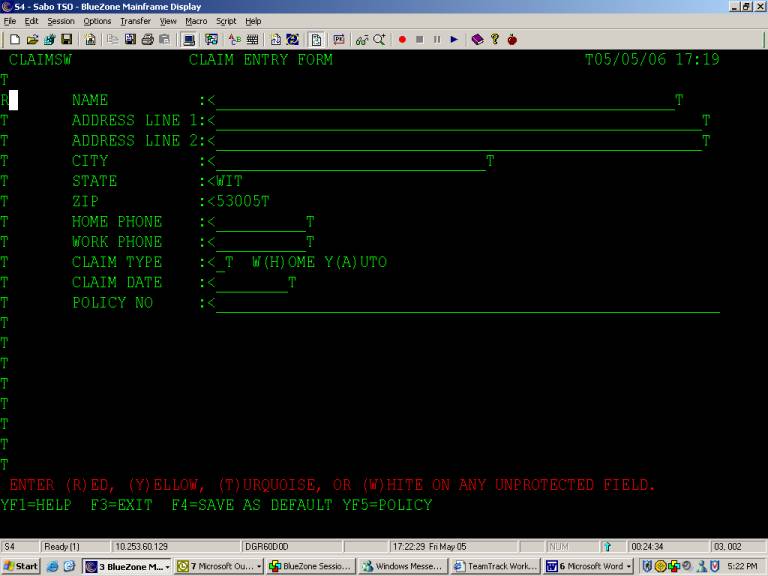

In order to change colors on the panel:
Which brings:
The user may use color code characters to change description fields’ colors .
Here are some changes made:

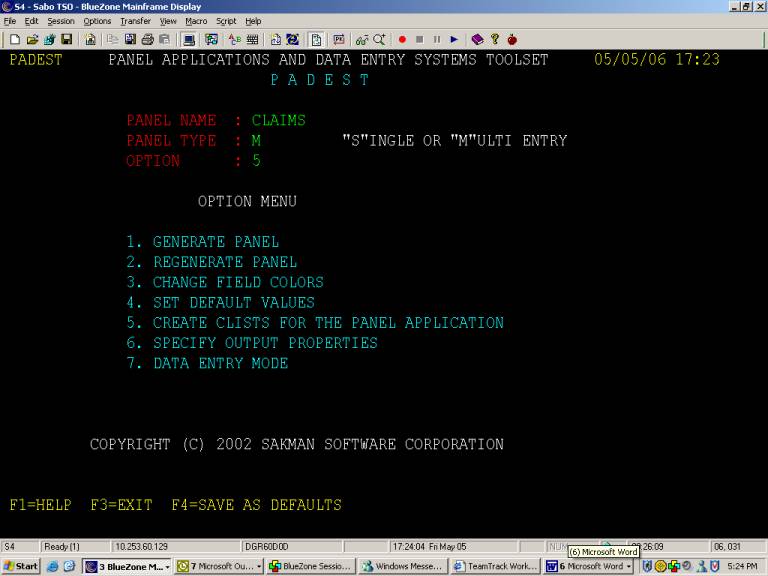

Option 5 is used to recreate CLISTs after a panel is regenerated:

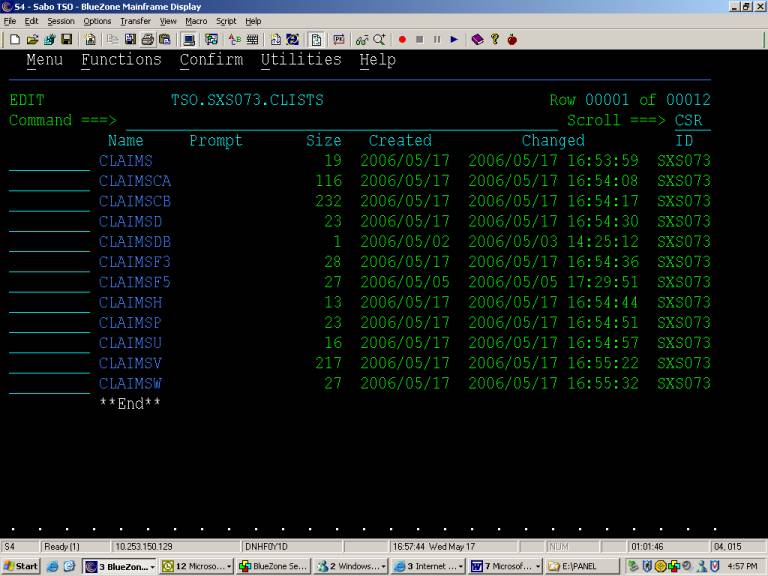

Following is a list of CLIST members created:

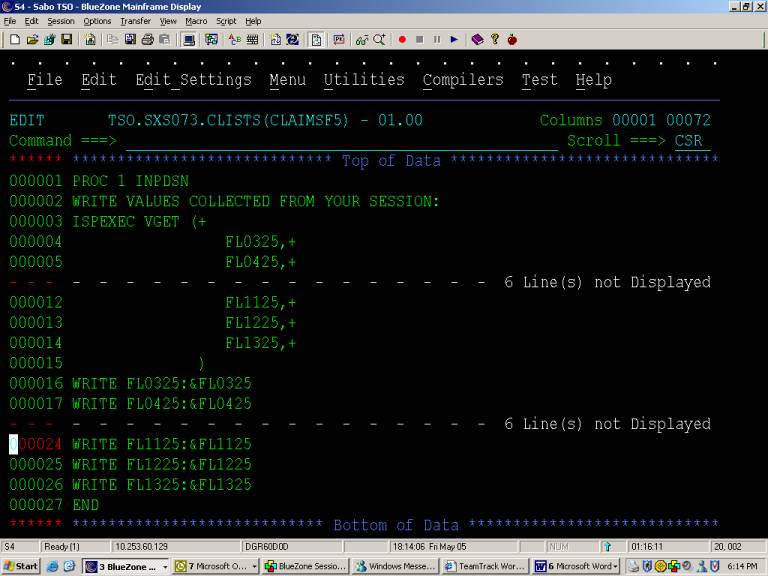

The contents of CLAIMSF5 member, which will be run if PF5 is pressed on the panel. The user is most likely expected to update this CLIST.

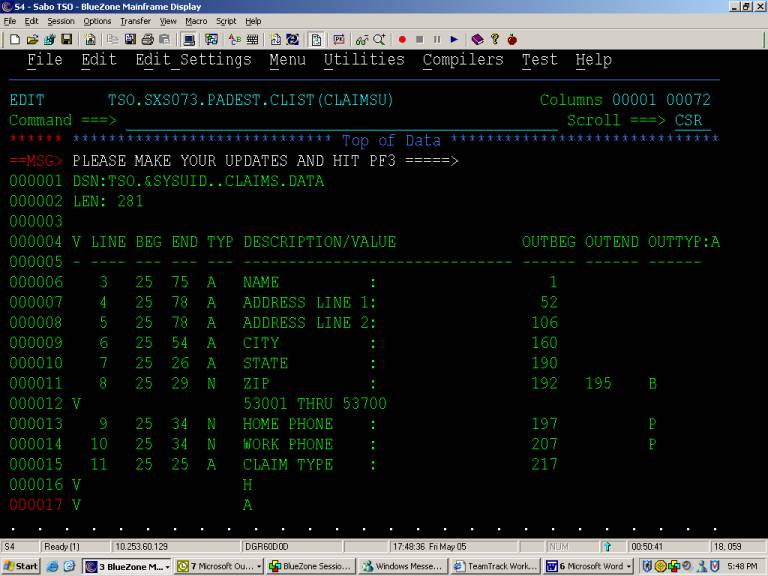

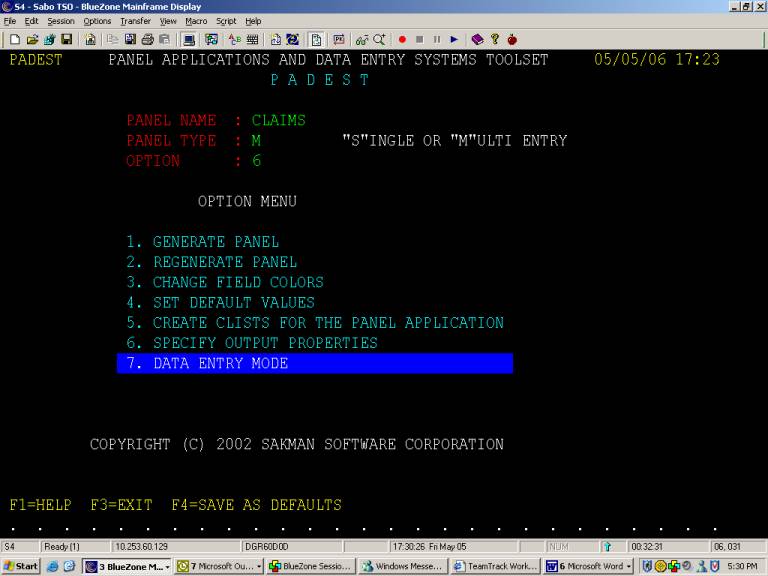

Field properties may be updated using OPTION 6:
Blank OUTEND fields are assumed to be (OUTBEG + FIELD LENGTH – 1).

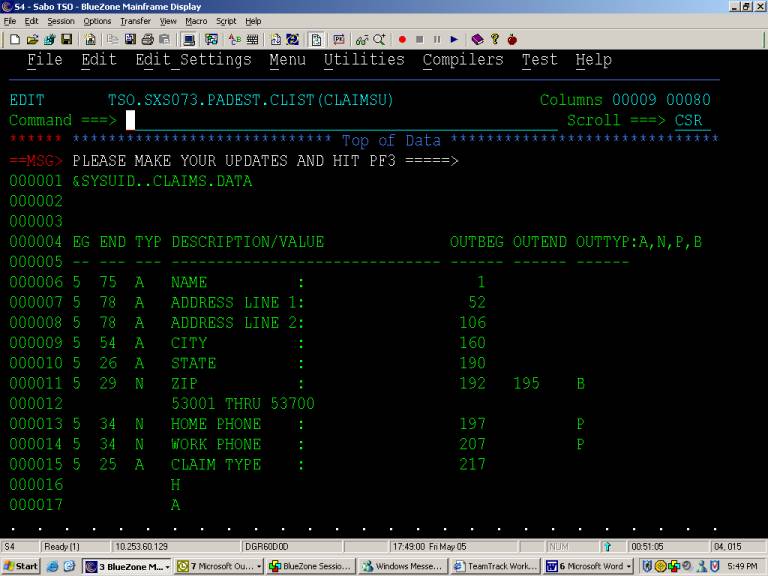

A sample modification of attributes:
Right Side of the attributes screen:

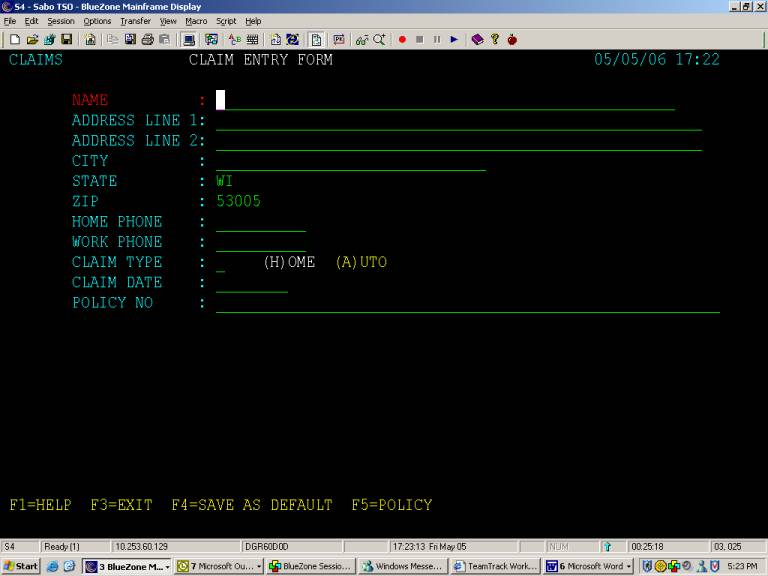

Invocation of panel “CLAIMS” for data entry (Default Values defined before come here):

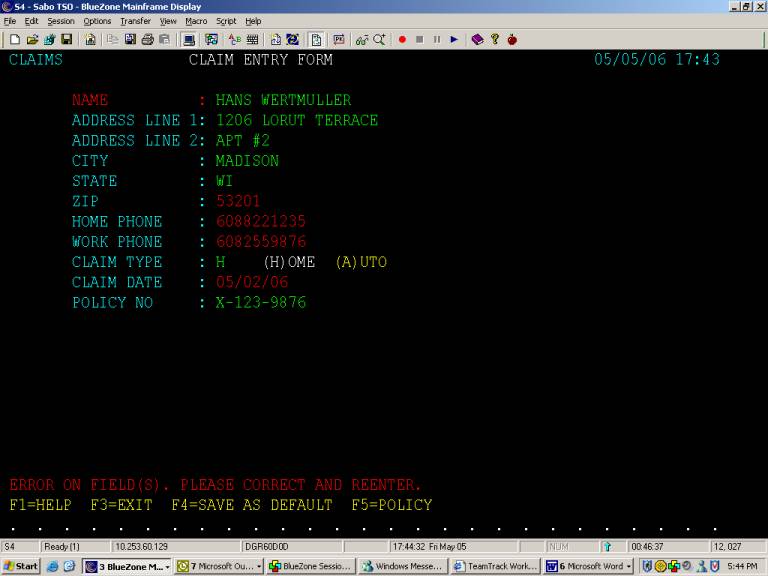

An entry with invalid information:
Displaying all error fields in RED:
Correction of errors and pressing ENTER key:
Making another entry:
Pressing of PF3 brings the following screen

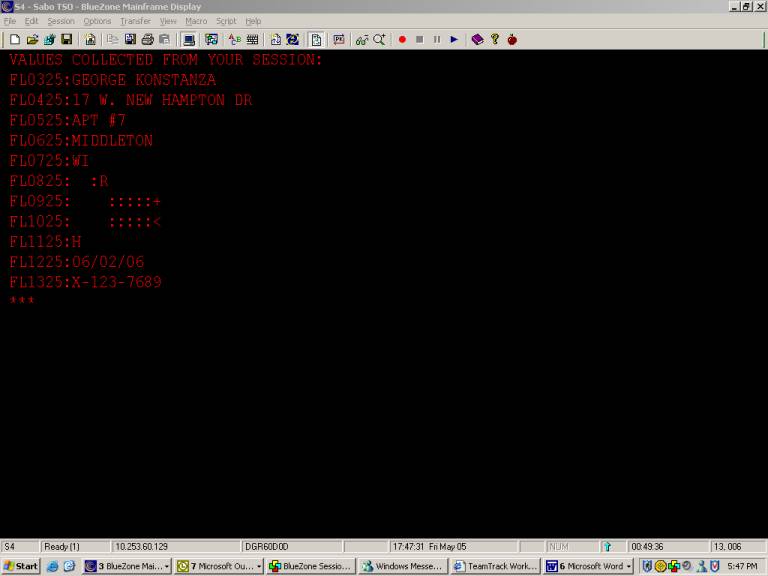

In absence of a user update of CLAIMSF3 CLIST created by the utility, the following is displayed as a default:
Following is how the output dataset created by this sample
Data Entry session looks:
Positions 1-72:

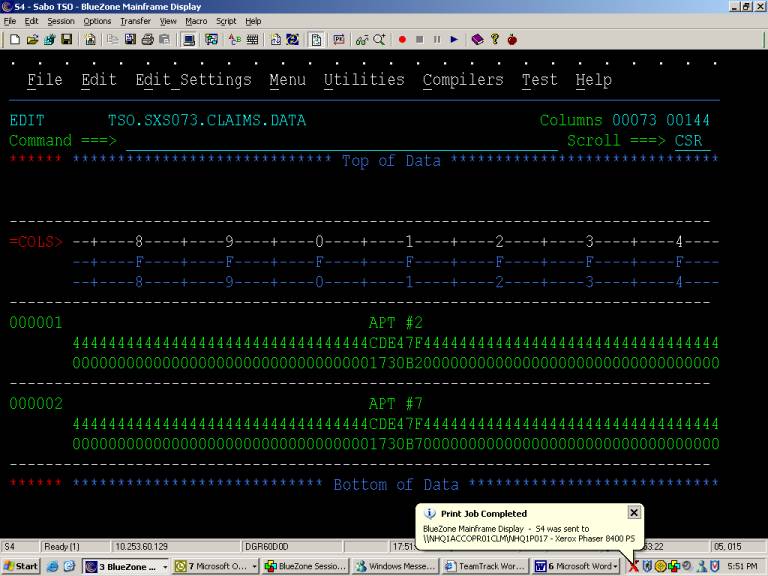

Positions 73-144 of the output:

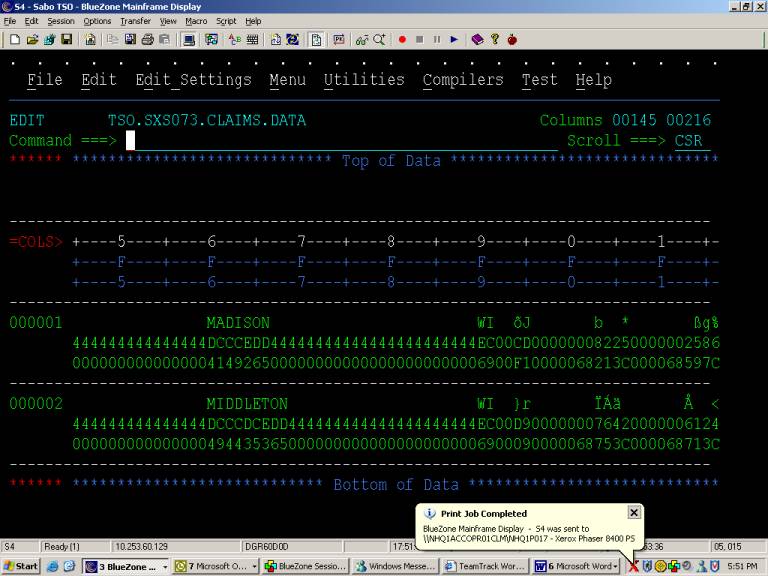

Positions 145-216 of the output
(Observe position 192-195 to be BINARY, and 197-206 and 207-216 to be PACKED according to definitions):

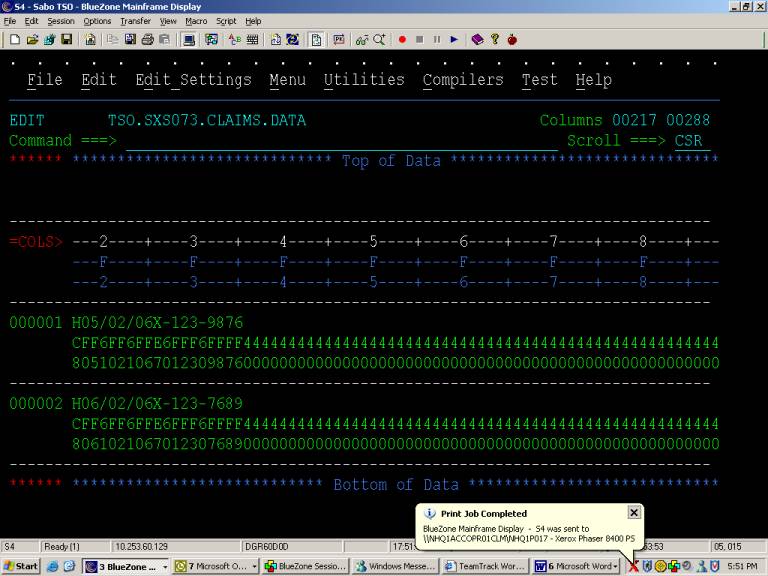

Positions 217-288 of the output:
A SAMPLE PADEST APPLICATION (II)
CREATE A TSO/ISPF PANEL APPLICATION TO COLLECT VALID
INFORMATION, AND ISSUE COMMANDS IN
ORDER TO SUBMIT A JCL FOR PROCESSING SQL STATEMENTS.
PREMISE:
The user already has a CLIST, named “SPUFICL”, for processing
SQL statements, that works on 2 parameters: 1. DB2 Subsystem Name, 2. Input
Dataset Name that contains SQL statements.
TASK:
Develop an ISPF Panel application that will enable
the user to enter valid fields, (to be
utilized as driving parameters by “SPUFICL”), and that will be able to trigger
“SPUFICL”.

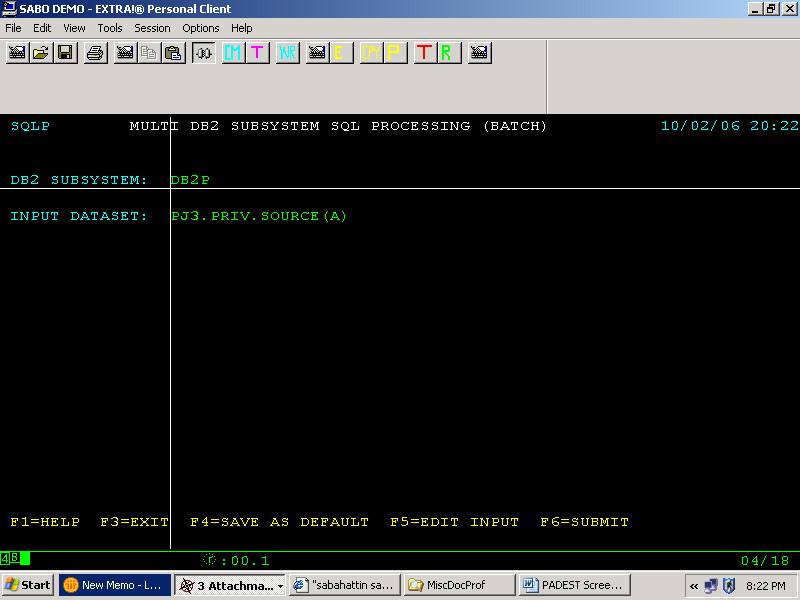

TARGET SCREEN: “TSO SQLP” brings a Panel for ”SQL
Processing”. ”SQL Processing” is an
application developed through PADEST.
PRESSING THE PF6 KEY
AFTER THE NECESSARY FIELDS ARE
POPULATED, A JCL is ISSUED. (PF5 AND ENTER KEYS WILL ALSO HAVE THEIR
FUNCTIONS, AS WILL BE DESCRIBED LATER.)
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
PADEST PANEL
APPLICATIONS AND DATA ENTRY SYSTEMS TOOLSET 09/26/06 12:29 P A D E S T
PANEL NAME :
sqlp PANEL TYPE :
s "S"INGLE OR
"M"ULTI ENTRY
OPTION :
1
OPTION MENU 1. GENERATE PANEL 2. REGENERATE PANEL 3. CHANGE FIELD COLORS 4. SET DEFAULT VALUES 5. CREATE CLISTS FOR THE PANEL APPLICATION 6. SPECIFY OUTPUT PROPERTIES 7. DATA ENTRY MODE
COPYRIGHT (C) 2002 SAKMAN SOFTWARE CORPORATION
F1=HELP F3=EXIT
F4=SAVE AS DEFAULTS |
STARTING THE
DEVELOPMENT PROCESS: In order to
develop ”SQL Processing” application, PADEST is called from your TSO/ISPF
Session. “TSO PADEST” brings the
following Panel; and Panel Name, Panel Type, and Option is entered.
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
SQLP
_________________________________________________________ 09/26/06
12:32 _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________
F1=HELP F3=EXIT
F4=SAVE AS DEFAULT
_________________________________________ |
ENTER key on the
PADEST Primary Menu brings the following Blank Screen.
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
SQLP
MULTI DB2 SUBSYSTEM SQL PROCESSOR (BATCH) 07/07/06 15:24 DB2 SUBSYSTEM: <B > INPUT DATASET: <B > F1=HELP
F3=EXIT F4=SAVE AS
DEFAULT F5=EDIT INPUT F6=SUBMIT |

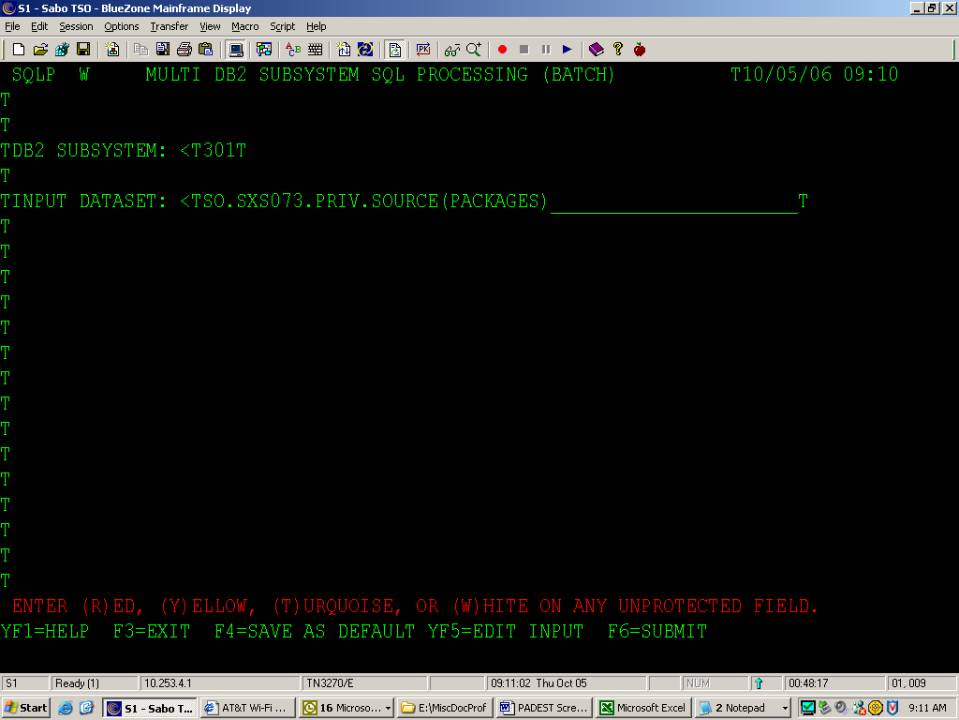

Protected and Unprotected
Fields (Data Fields) are entered. First column of an unprotected field
may have an Edit Code
(“B” in MODULE NAME indicates that it is a mandatory alphanumeric field.)
|
|
1 2 3 4 5 6 7
8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
DSN:TSO.&SYSUID..SQLP.DATA LEN: 58
V LINE BEG END TYP
DESCRIPTION/VALUE OUTBEG
OUTEND OUTTYP:A,N,P,B - ---- --- --- ---
------------------------------ ------ ------ ------ 4
18 21 B
DB2 SUBSYSTEM:
1 6
18 71 B
INPUT DATASET:
5 |
Enter key on the
previous screen brings the following Edit Screen, where Validation Values may
be entered; Output Begin&End positions, Output Type (alpha, num, packed,
binary) may be changed.
The sample problem
requires changes as follows to validate data entered on a certain field:
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 24 |
DSN:TSO.&SYSUID..SQLP.DATA LEN: 58
V LINE BEG END TYP
DESCRIPTION/VALUE OUTBEG
OUTEND OUTTYP:A,N,P,B - ---- --- --- ---
------------------------------ ------ ------ ------ 4
18 21 A
DB2 SUBSYSTEM:
1 V T301 V T302 V T303 V P201 V t301 V t302 V t303 V p201 6
18 71 A
INPUT DATASET:
5 |
“V” lines entered
after line #6 indicates the valid values for the “DB2 SUBSYSTEM” field.
A PF3 ON THE PREVIOUS
SCREEN CAUSES THE APPLICATION TO BE
GENERATED.
AS A RESULT, CLISTs, “BNDRFE”, “BNDRF5”, and “BNDRF6”, ARE CREATED (EACH AS SHOWN
BELOW).
“BNDRFE” RUNS WHEN
ENTER KEYS IS PRESSED ON THE PANEL; “BNDRF5E”, WHEN PF5; AND “BNDRFE” WHEN PF6.
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
PROC 1 INPDSN WRITE VALUES COLLECTED
FROM YOUR SESSION: ISPEXEC VGET (+ FL0418,+ FL0618,+ ) WRITE
FL0418:&FL0418
WRITE
FL0618:&FL0618
END |
FOR THE SPECIFIC
FUNCTION (EDITING THE INPUT DATASET) TO BE PERFORMED WHEN THE PF5 IS PRESSED,
THE USER NEEDS TO MODIFY “SQLPF5” AS FOLLOWS:
PROC 1 INPDSN
ISPEXEC VGET (+ FL0418,+ FL0618,+ ) /* SET LEFTPAR =
&STR(( LISTDSI
'&SUBSTR(1:&SYSINDEX(&STR( ),&FL0618) - 1,&FL0618)' IF &SYSDSORG =
&STR(PO) AND +
&SYSINDEX(&STR(&LEFTPAR),&FL0618) NG 0 THEN + DO
ISPEXEC SELECT CMD(%AMEMLSTB
&FL0618) ISPEXEC VGET (MEMLNAME)
IF &MEMLNAME > &STR( ) THEN
+
DO SET FL0618 =
&SUBSTR(1:&SYSINDEX(&STR( ),&FL0618) - 1,&FL0618)+ (&MEMLNAME.)
ISPEXEC VPUT (FL0618) END
END
ELSE +
DO
ISPEXEC EDIT
DATASET('&SUBSTR(1:&SYSINDEX(&STR( ),&FL0618) - 1,+ &FL0618)')
END /* ISPEXEC SELECT
CMD(%SQLPV SQLP + RUNMODE(U) + FL0418(&FL0418)
+
FL0618(&FL0618) + ) + NEWAPPL(PDST) PASSLIB /* END |
COMMENTS
FOR THE LEFT SIDE: GETTING
DATASET ATTRIBUTES IF
THE DATASET IS A PO, I.E. PDS AND
DOES NOT HAVE A MEMBER NAME AMEMLSTB
IS A CLIST THE USER HAS, TO SELECT/UPDATE MEMBERS IN A PDS WHICH
RETURNS THE MEMBER NAME IN VARIABLE MEMLNAME UPDATE
THE VARIABLE POOL TO REFLECT THE INPUT DATASET NAME IN FL0618 EDIT
THE INPUT DATASET IF IT IS A PS CALL
THE PADEST-GENERATED-CLIST SQLPV, IN ORDER TO MAKE THE NEW VALUES OF “DB2
SUBSYSTEM” (FL0418) AND “INPUT DATASET” (FL0618) DEFAULT VALUES. THE
FORMULA OF CALLING THE PADEST-GENERATED-CLIST SQLPV, IS GIVEN IN THE
PADEST-GENERATED-CLIST SQLPW. |
FOR THE SPECIFIC
FUNCTION (CALLING THE CLIST, SPUFICL) TO BE PERFORMED WHEN THE PF6 IS PRESSED,
THE USER NEEDS TO MODIFY “SQLPF6” AS FOLLOWS:
PROC 1 INPDSN
ISPEXEC VGET (+ FL0418,+ FL0618,+ ) ISPEXEC SELECT
CMD(%SPUFICL &FL0418 &FL0618) END
|
|
THE USER MAY DESIRE
TO MODIFY THE ENTER-KEY CLIST “SQLPFE”, AS FOLLOWS, JUST TO VALIDATE THE “DB2
SUBSYSTEM” AND “INPUT DATASET”, AND TO CALL THE PADEST-GENERATED-CLIST SQLPV,
IN ORDER TO MAKE THE NEW VALUES OF “DB2 SUBSYSTEM” (FL0418) AND “INPUT DATASET”
(FL0618) DEFAULT VALUES.
PROC 1 INPDSN CONTROL NOMSG
ISPEXEC VGET (+ FL0418,+ FL0618,+ )
/*
LISTDSI
'&SUBSTR(1:&SYSINDEX(&STR( ),&FL0618) - 1,&FL0618)'
+ DIRECTORY
SMSINFO
IF &LASTCC=16
THEN + WRITE INPUT DATASET IS NOT FOUND, TAPE, OR
INVALID. /*
SET CHARLPAR = &STR(( IF &SYSDSORG =
&STR(PO) AND +
&SYSINDEX(&CHARLPAR,&STR(&FL0618)) NG &STR(0) THEN
+ WRITE INPUT DATASET IS A PDS; IT NEEDS
TO HAVE A MEMBER NAME. /* ISPEXEC SELECT CMD(%SQLPV
SQLP + RUNMODE(U) +
FL0418(&FL0418) +
FL0618(&FL0618) + ) + NEWAPPL(PDST) PASSLIB /*
END
|
COMMENTS
FOR THE LEFT SIDE: GETTING
DATASET ATTRIBUTES JUST
A REMINDER. THE USER NEEDS TO USE PF5 TO EDIT A PDS FOR MEMBERS. CALL
THE PADEST-GENERATED-CLIST SQLPV, IN ORDER TO MAKE THE NEW VALUES OF “DB2
SUBSYSTEM” (FL0418) AND “INPUT DATASET” (FL0618) DEFAULT VALUES. THE
FORMULA OF CALLING THE PADEST-GENERATED-CLIST SQLPV, IS GIVEN IN THE
PADEST-GENERATED-CLIST SQLPW. |
User-developed CLIST,
SPUFICL FOR SQL PROCESSING THAT WORKS ON 2 PARAMETERS: 1. DB2 SUBSYSTEM NAME,
2. INPUT DATASET NAME.
PROC 2 DB2SUBS
INPUTDS CONTROL NOMSG /*
IF &DB2SUBS =
&STR(P201) THEN +
DO
SET JES01 = &STR(/*JOBPARM
S=MVS2) SET JES02 = &STR(//*) SET LIBDS =
&STR(AMFAMSD.DB2.PROD.RUNLIB.LOAD) END
ELSE +
IF &DB2SUBS =
&STR(T301) + OR &DB2SUBS =
&STR(T302) + OR &DB2SUBS =
&STR(T303) THEN + DO SET JES01 = &STR(/*JOBPARM
S=MVS3) SET JES02 = &STR(//*) SET LIBDS =
&STR(AMFAMSD.DB2.TEST.RUNLIB.LOAD) END
ELSE +
DO WRITE INVALID DB2 SUBSYSTEM
:&DB2SUBS. RUN ABORTED GOTO ABORT END
/*
SET LEFTPAR = &STR(( SET RIGHTPAR =
&STR()) /* SUBMIT * END($$) //&SYSUID.S JOB
(9056,Q16P),37752.RUN.QUERY,CLASS=A,MSGCLASS=W, // MSGLEVEL=(1,1),NOTIFY=&SYSUID &JES01
&JES02
//SPUFI EXEC PGM=IKJEFT1B //SYSTSIN DD * DSN
SYSTEM(&DB2SUBS) &STR(RUN
PROGRAM&LEFTPAR.DSNTEP2&RIGHTPAR + PLAN&LEFTPAR.DSNTEP2&RIGHTPAR
LIB&LEFTPAR.'&LIBDS'&RIGHTPAR +) &STR(PARM&LEFTPAR.'/ALIGN&LEFTPAR.LHS&RIGHTPAR.'&RIGHTPAR.) END /*
//SYSPRINT DD
SYSOUT=* //SYSTSPRT DD
SYSOUT=* //SYSABEND DD
SYSOUT=* //SYSDBOUT DD
SYSOUT=* //SYSABOUT DD
SYSOUT=* //SYSOUT DD SYSOUT=* //SYSIN DD DISP=SHR,DSN=&INPUTDS
$$
WRITE JOB &SYSUID.S SUBMITTED
FOR "RUN QUERY" REQUEST ON &INPUTDS END
ABORT:+
END |
COMMENTS
FOR THE LEFT SIDE: * * * DEPENDING ON THE “DB2 SUBSYSTEM” the /*JOBPARM AND RUN
LIBRARY IS * DETERMINED * * * * * * * * * * * * * * * * AND
THE JCL FOR SUBMITTING THE SQL STATEMENTS CONTAINED IN THE “INPUT DATASET” |
If the colors on the “SQL Processing” panel is desired to be changed,
simply option 3 of the PADEST Menu is selected, which brings the following
screen, where you may enter the Color Codes on desired places.
A SAMPLE PADEST APPLICATION (III)
CREATE A PANEL APPLICATION TO COLLECT
VALID INFORMATION, AND ISSUE COMMANDS
IN ORDER TO SUBMIT JCLs FOR DB2 BINDS
PREMISE:
The user already has a CLIST, named “BNDDBRM”, for DB2
binding that works on 3 parameters: 1. Prog-name, 2. Environment, 3.
DBRM-library. “BNDDBRM” has enough
intelligence to derive other parameters of a DB2 Bind, based on the three
parameters it receives; and can issue a JCL for the purpose.
TASK:
Develop an ISPF Panel application that will enable
the user to enter valid fields, (to be
utilized as driving parameters by “BNDDBRM”), and that will be able to trigger
“BNDDBRM”.
TARGET SCREEN: “TSO BNDR” brings a Panel for ”DB2
Binder”. ”DB2 Binder” is an application
developed through PADEST.
PRESSING THE ENTER
KEY AFTER THE NECESSARY FIELDS ARE
POPULATED, ONE OR MORE JCLS ARE
ISSUED.
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
PADEST PANEL
APPLICATIONS AND DATA ENTRY SYSTEMS TOOLSET 09/26/06 12:29 P A D E S T
PANEL NAME :
bndr PANEL TYPE :
s "S"INGLE OR
"M"ULTI ENTRY OPTION :
1
OPTION MENU 1. GENERATE PANEL 2. REGENERATE PANEL 3. CHANGE FIELD COLORS 4. SET DEFAULT VALUES 5. CREATE CLISTS FOR THE PANEL APPLICATION 6. SPECIFY OUTPUT PROPERTIES 7. DATA ENTRY MODE
COPYRIGHT (C) 2002 SAKMAN SOFTWARE CORPORATION
F1=HELP F3=EXIT
F4=SAVE AS DEFAULTS |
STARTING THE
DEVELOPMENT PROCESS: In order to
develop ”DB2 Binder” application, PADEST is called from your TSO/ISPF
Session. “TSO PADEST” brings the
following Panel; and Panel Name, Panel Type, and Option is entered.
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
BNDR
_________________________________________________________ 09/26/06
12:32 _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________
F1=HELP F3=EXIT
F4=SAVE AS DEFAULT
_________________________________________ |
ENTER key on the
PADEST Primary Menu brings the following Blank Screen.
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
BNDR AMERICAN FAMILY DB2 BINDER 09/26/06 12:32
MODULE NAME:<B > ENVIRONMENTS TO BE BOUND INTO: (Place an 'X' after the Env Name. Multiple Environments may be
chose U01 < >
U02 < > U05 <
> I01 < >
I02 < > I03 <
> A01 < >
PRD < >
DBRM LIBRARY TO BE USED: (Fill in the blanks, or place an 'X' in ONLY ONE of the
following opt
AMFAMDD.CLAIMS.DBRMP < > AMFAMDD.SHARED.DBRM < > (X) AMFAMTD.CLAIMS.DBRM < > AMFAMTD.SHARED.DBRM
< > (X) AMFAMTD.INTG< >.CLAIMS.DBRM AMFAMTD.INTG< >.SHARED.DBRM (1, 2, or 3) AMFAMTD.UNIT< >.CLAIMS.DBRM AMFAMTD.UNIT< >.SHARED.DBRM (1, 2, or 5) AMFAMNDV.<
>APPS.DBRM (PRD,A01,I03,I02)
I01,U05,U02,U01) DBRM NAME: < > F1=HELP F3=EXIT F4=SAVE AS DEFAULT |
Protected and
Unprotected Fields (Data Fields) are entered. First column of an unprotected
field
may have an Edit Code
(“B” in MODULE NAME indicates that it is a mandatory alphanumeric field.)
|
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
DSN:TSO.&SYSUID..BCKBND.DATA LEN: 71
V
LINE BEG END TYP DESCRIPTION/VALUE OUTBEG OUTEND OUTTYP:A,N,P,B -
---- --- --- --- ------------------------------ ------ ------ ------ 3
29 36 B
MODULE NAME:
1 7
21 21 A
U01
9 7
30 30 A
U02
10 7
39 39 A
U05
11 8
21 21 A
I01
12 8
30 30 A
I02
13 8
39 39 A
I03
14 9
21 21 A
A01
15 9
30 30 A
PRD 16 14
27 27 A
AMFAMDD.CLAIMS.DBRMP
17 14
55 55 A
AMFAMDD.SHARED.DBRM
18 15
26 26 A
AMFAMTD.CLAIMS.DBRM
19 15
55 55 A
AMFAMTD.SHARED.DBRM
20 16
18 18 A
AMFAMTD.INTG
21 16
47 47 A
.CLAIMS.DBRM AMFAMTD.INTG 22
17
18 18 A
AMFAMTD.UNIT
23 17
47 47 A
.CLAIMS.DBRM AMFAMTD.UNIT 24 18
15 17 A
AMFAMNDV.
25 20
17 60 A
DBRM NAME:
28 |
Enter key on the
previous screen brings the following Edit Screen, where Validation Values may
be entered; Output Begin&End positions, Output Type (alpha, num, packed,
binary) may be changed.
The sample problem
requires changes as follows to validate data entered on certain fields:
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 22 23 24 |
DSN:TSO.&SYSUID..BCKBND.DATA
LEN: 71
V LINE BEG END TYP
DESCRIPTION/VALUE OUTBEG
OUTEND OUTTYP:A,N,P,B - ---- --- --- ---
------------------------------ ------ ------ ------ 3
29 36 B
MODULE NAME: 1 7
21 21 A
U01
9
…………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………… 17
47 47 A
.CLAIMS.DBRM AMFAMTD.UNIT 24 V 1 thru 2 V 5 18
15 17 A
AMFAMNDV.
25 V PRD …………………………………………………………………… V U01 ……………………………………………………………………
V A01 ……………………………………………………………………
V I01 thru I03
20
17 60 A
DBRM NAME:
28 |
A PF3 ON THE PREVIOUS
SCREEN CAUSES THE APPLICATION TO BE
GENERATE D. AS A RESULT, CLIST, “BNDRFE”, IS CREATED. (ALSO, BNDRF5,
6, 7, AND 8, IF PAINTED.) “BNDRFE” RUNS
WHEN ENTER KEYS IS PRESSED ON THE PANEL.
|
1 2 3 4 5 6 7 8 12345678901234567890123456789012345678901234567890123456789012345678901234567890 |
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 21 22 23 24 |
PROC 1 INPDSN
ISPEXEC VGET (+ FL0329,+ FL0721,+ FL0730,+ FL0739,+ FL0821,+ FL0830,+ FL0839,+ FL0921,+ FL0930,+ FL1427,+ FL1455,+ FL1526,+ FL1555,+ FL1618,+ FL1647,+ FL1718,+ FL1747,+
FL1815,+ FL2017,+ ) END |
IN ORDER TO CALL THE
DB2 BINDER CLIST, “BNDDBRM”, WHEN THE ENTER IS PRESSED, THE USER NEEDS TO
MODIFY “BNDRFE” AS FOLLOWS:
PROC 1 INPDSN
ISPEXEC VGET (+ FL0329,+ FL0721,+ FL0730,+ FL0739,+ FL0821,+ FL0830,+
FL0839,+ FL0921,+ FL0930,+ FL1427,+ FL1455,+ FL1526,+ FL1555,+ FL1618,+ FL1647,+ FL1718,+ FL1747,+ FL1815,+ FL2017,+ ) /*
IF &FL0721 =
&STR(S) + OR &FL0730 =
&STR(S) + OR &FL0739 =
&STR(S) + OR &FL0821 =
&STR(S) + OR &FL0830 =
&STR(S) + OR &FL0839 =
&STR(S) + OR &FL0921 =
&STR(S) + OR &FL0930 =
&STR(S) THEN ELSE +
DO
WRITE AN ENVIRONMENT MUST BE
SELECTED.
GOTO ENDPROG END
/* IF &FL1427 =
&STR(S) THEN SET DBRLIB = &STR(AMFAMDD.CLAIMS.DBRMP) ELSE +
IF &FL1455 =
&STR(S) THEN SET DBRLIB = &STR(AMFAMDD.SHARED.DBRM) ELSE + IF &FL1526 =
&STR(S) THEN SET DBRLIB = &STR(AMFAMTD.CLAIMS.DBRM) ELSE + IF &FL1555 =
&STR(S) THEN SET DBRLIB = &STR(AMFAMTD.SHARED.DBRM) ELSE + IF &FL1618 >
&STR(0) THEN SET DBRLIB = &STR(AMFAMTD.INTG&FL1618..CLAIMS+
.DBRM) ELSE + IF &FL1647 >
&STR(0) THEN SET DBRLIB = &STR(AMFAMTD.INTG&FL1647..SHARED+
.DBRM) ELSE +
IF &FL1718 >
&STR(0) THEN SET DBRLIB = &STR(AMFAMTD.UNIT&FL1718..CLAIMS+
.DBRM) ELSE +
|
IF &FL1747 >
&STR(0) THEN SET DBRLIB = &STR(AMFAMTD.UNIT&FL1747..SHARED+
.DBRM) ELSE +
IF &FL1815 >
&STR(A00) THEN SET DBRLIB = &STR(AMFAMNDV.&FL1815.APPS.DBRM) ELSE +
IF &FL2017 >
&STR(A) THEN SET DBRLIB = &STR(&FL2017) ELSE +
DO
WRITE A DBRM MUST BE SELECTED.
GOTO ENDPROG END
/* IF &FL0721 =
&STR(S) THEN + DO
SET ENVIRON = &STR(U01) ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB) END
IF &FL0730 =
&STR(S) THEN +
DO
SET ENVIRON = &STR(U02)
ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB)
END
IF &FL0739 =
&STR(S) THEN + DO
SET ENVIRON = &STR(U05)
ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB) END
IF &FL0821 =
&STR(S) THEN + DO
SET ENVIRON = &STR(I01)
ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB) END
IF &FL0830 =
&STR(S) THEN + DO SET ENVIRON = &STR(I02)
ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB) END IF &FL0839 =
&STR(S) THEN + DO
SET ENVIRON = &STR(I03) ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB) END
IF &FL0921 =
&STR(S) THEN + DO
SET ENVIRON = &STR(A01)
ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB) END
IF &FL0930 =
&STR(S) THEN + DO
SET ENVIRON = &STR(PRD)
ISPEXEC SELECT CMD(%BNDDBRM
&FL0329 &ENVIRON &DBRLIB) END
/* ENDPROG:+
END |
User-developed CLIST,
BNDDBRM, FOR DB2 BINDING THAT WORKS ON 3 PARAMETERS: 1. PROG-NAME, 2.
ENVIRONMENT, 3. DBRM-LIBRARY.
PROC 3 PROGNAME ENVIRON
DBRLIB /*CONTROL LIST CONLIST
SYMLIST MSG CONTROL NOMSG /*
SET MVSID = &STR(MVS3) SET OWNERID =
&STR(OWNER (&SYSUID) - ) CONTROL END(SON) IF
&SUBSTR(3:4,&PROGNAME) = &STR(CI) THEN SET COLLTYP =
&STR(0) ELSE SET COLLTYP = &STR(B) /*
IF &ENVIRON =
&STR(U01) THEN + DO SET DB2SYS = &STR(T301) SET CREATOR = &STR(T301DBA)
SET COLLID = &STR(CLMS)&COLLTYP.01C SON
ELSE +
IF &ENVIRON =
&STR(U02) THEN + DO
SET DB2SYS = &STR(T301) SET CREATOR = &STR(T321DBA)
SET COLLID = &STR(CLMS)&COLLTYP.02C SON
ELSE +
IF &ENVIRON =
&STR(U05) THEN + DO
SET DB2SYS = &STR(T301) SET CREATOR = &STR(T351DBA)
SET COLLID = &STR(CLMS)&COLLTYP.05C SON
ELSE + IF &ENVIRON =
&STR(I01) THEN + DO
SET DB2SYS = &STR(T302) SET CREATOR = &STR(T302DBA)
SET COLLID =
&STR(CLMS)&COLLTYP.01C SON ELSE +
IF &ENVIRON =
&STR(I02) THEN + DO
SET DB2SYS = &STR(T302)
SET CREATOR = &STR(T322DBA)
SET COLLID =
&STR(CLMS)&COLLTYP.02C SON
ELSE + IF &ENVIRON =
&STR(I03) THEN + DO
SET DB2SYS = &STR(T302)
SET CREATOR = &STR(T332DBA)
SET COLLID =
&STR(CLMS)&COLLTYP.03C SON ELSE +
|
IF &ENVIRON =
&STR(A01) THEN +
DO
SET DB2SYS = &STR(T303)
SET CREATOR = &STR(T303DBA) SET COLLID =
&STR(CLMS)&COLLTYP.01C SON
ELSE +
IF &ENVIRON =
&STR(PRD) THEN + DO
SET DB2SYS = &STR(P201) SET CREATOR = &STR(P201DBA)
SET COLLID = &STR(GNR2B01C) SET MVSID = &STR(MVS2) SET OWNERID = &STR(OWNER (GENRCPGR) - ) SON
ELSE +
DO WRITE ENVIRONMENT MUST BE U01, U02,
U05, I01-I03, AND A01 END
SON CONTROL END(END) /*
SUBMIT * END($$) //&SYSUID.B JOB
(9056,Q16P),37752.BIND.DBRM,CLASS=A,MSGCLASS=W, //
MSGLEVEL=(1,1),NOTIFY=&SYSUID &STR(/*JOBPARM
S=)&STR(&MVSID) //BIND007 EXEC
PGM=IKJEFT1B,DYNAMNBR=20 &STR(//DBRMLIB DD
DISP=SHR,DSN=&DBRLIB //SYSOUT DD
SYSOUT=* //SYSTSPRT DD SYSOUT=* //SYSIN DD
DUMMY //SYSTSIN DD
* &STR(DSN SYSTEM (&DB2SYS)
)
&STR(BIND PACKAGE
(&COLLID) - ) &OWNERID
&STR(QUALIFIER (&CREATOR) - ) &STR(MEMBER (&PROGNAME) -
)
&STR(ACTION (REPLACE) - ) &STR(CURRENTDATA (NO) - ) &STR(DEGREE (1) -
)
&STR(DYNAMICRULES
(RUN) - ) &STR(ENABLE (*
) - ) &STR(FLAG (I) -
)
&STR(VALIDATE (BIND) - ) &STR(ISOLATION (CS) - ) &STR(RELEASE (COMMIT) - ) &STR(SQLERROR (NOPACKAGE) - ) &STR(EXPLAIN (NO) ) $$
WRITE JOB &SYSUID.B
SUBMITTED FOR "BIND PACKAGE" REQUEST FOR MODULE + &PROGNAME WRITE ON &ENVIRON
USING &DBRLIB END
|

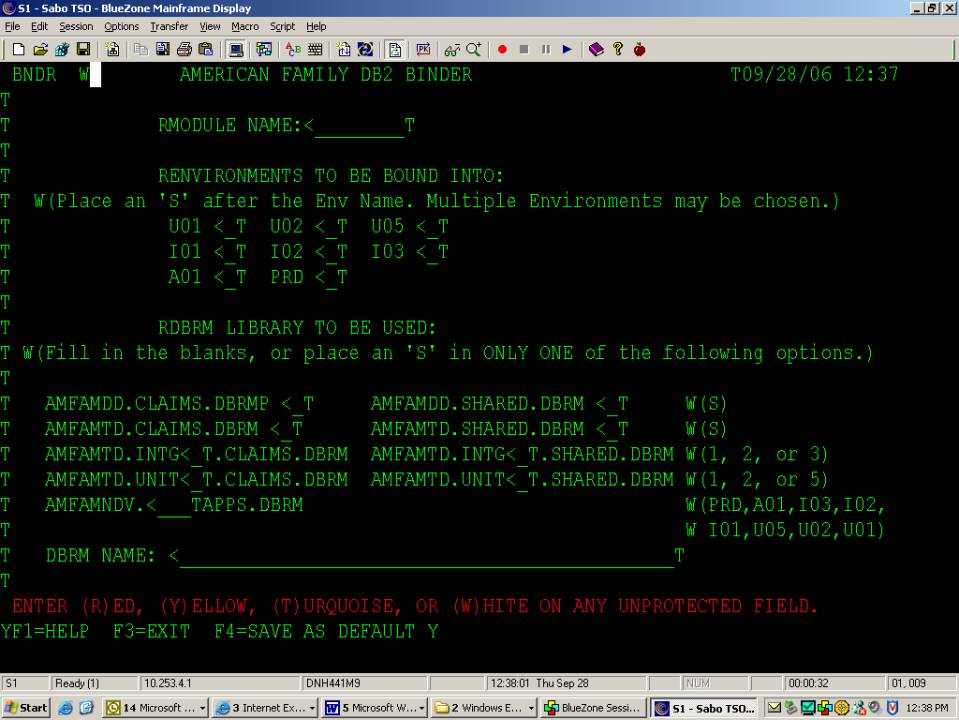

If the colors on the “DB2 Binder” panel is desired to be changed,
simply option 3 of the PADEST Menu is selected, which brings the following
screen, where you may enter the Color Codes on desired places.
